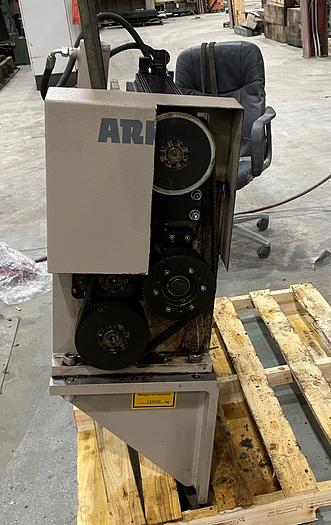

2010 ARKU FEED/STRAIGHTEN "ZIGZAG" COIL LINE

LAWECO COIL LOADING STATION

MAXIMUM COIL WIDTH: 20"

LOAD CAPACITY: 13,200 LBS

ARKU SINGLE-END UNCOILER

EXPANSION RANGE: 18.5" - 20.86" (22.44" - 24" WITH SCREW ON SEGMENTS)

COIL OD: 40" - 71.81"

MAXIMUM COIL WIDTH: 20"

MAXIMUM COIL WEIGHT: 13,200 LBS

EQUIPPED WITH:

HYDRAULIC EXPANSION

AUTOMATIC RE-EXPANSION

FRONT/BACK COIL GUIDES

HYDRAULIC RESTRICTOR ARMS (BOTH TOP & BOTTOM) WITH DRIVER

STRIP SENSING (USES ULTRASOUND FOR LOOP CONTROL)

LASER MEASURING FOR COIL DIAMETER

ROLLER CONVEYOR FOR LOOP GUIDE

ARKU THREADING UNIT

MAXIMUM COIL WIDTH: 20"

ARKU FEEDER/STRAIGHTENER

MAXIMUM COIL WIDTH: 20"

DIAMETER OF STRAIGHTENING ROLLS: 3.46"

NUMBER OF STRAIGHTENING ROLLS: 7 (HARDENED & GROUND)

DIAMETER OF EXIT PINCH ROLLS: 6"

ZIGZAG PUNCH

SELECT 1 OF 5-OUT PATTERNS

ZIGZAG SIDE STROKE

MAXIMUM 4.72" FROM CENTERLINE OF COIL

ARKU STRIP-END FEEDER

MAXIMUM COIL WIDTH: 20"

DIAMETER OF FEED ROLLS: 6"

ELECTRONICALLY DRIVEN

UPPER ROLL OPENS HYDRAULICALLY

"AS IS, WHERE IS"
