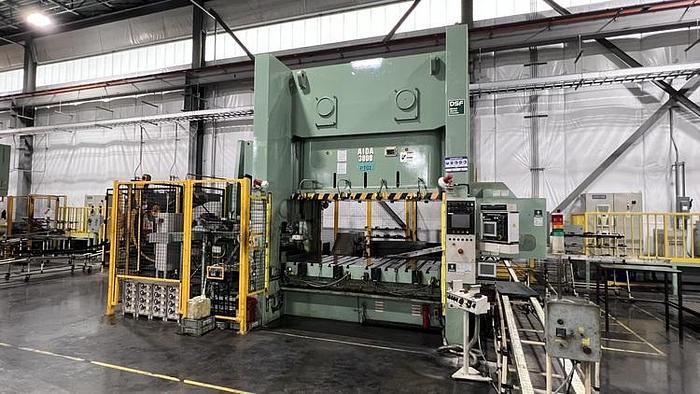

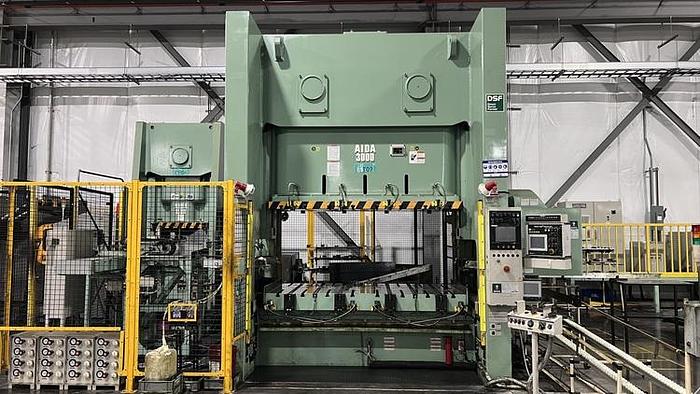

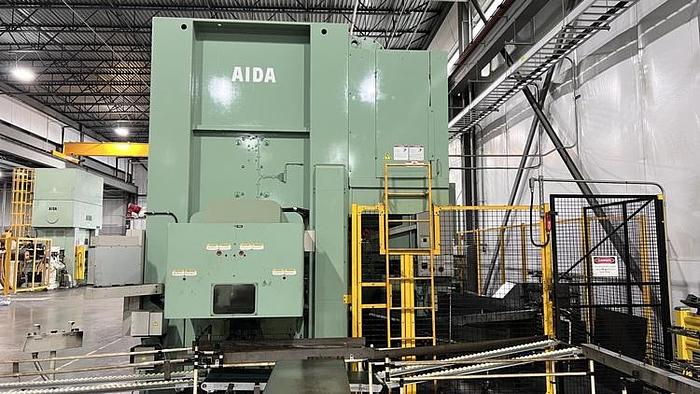

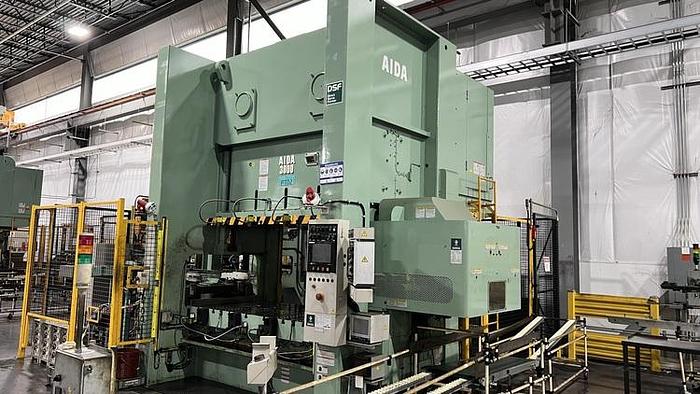

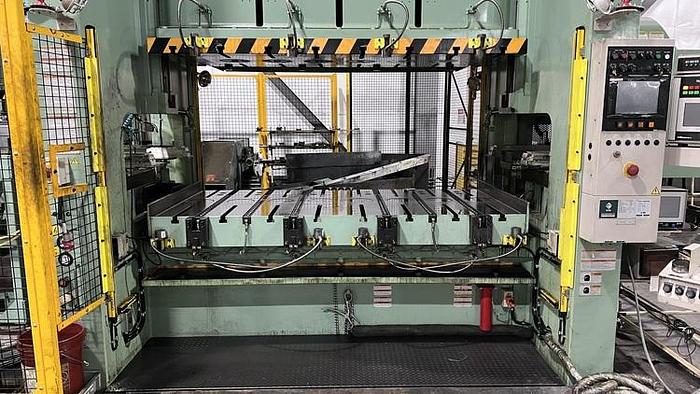

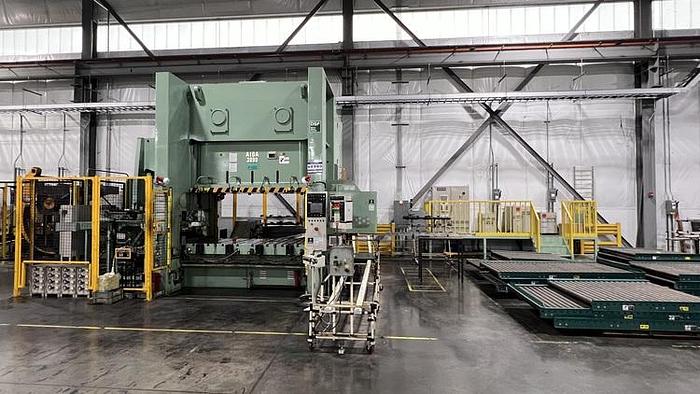

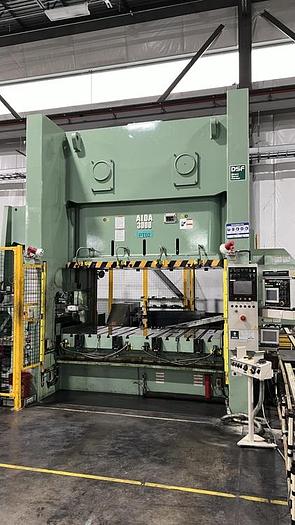

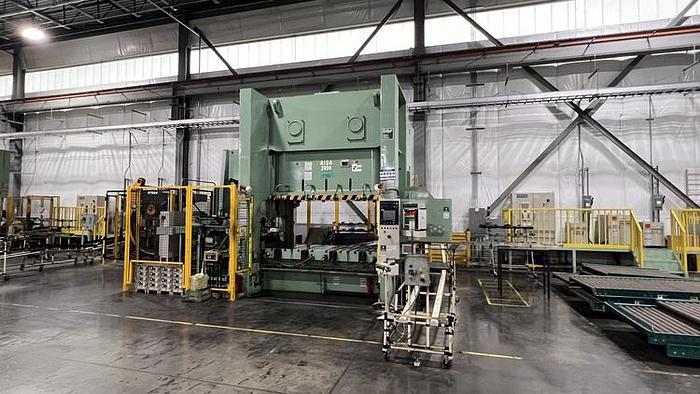

330 TON AIDA MODEL DSF-N2-3000 SERVO STRAIGHT SIDE SINGLE CRANK PRESS

MODEL NUMBER: DSF-N2-3000

SERIAL NUMBER: V0530-5054

YEAR NEW: 2016

CAPACITY: 330 TON

BED AREA: 94.48" LR x 47.24" FB

LENGTH OF STROKE: 12.99"

ADJUSTMENT: 3.93"

SHUT HEIGHT: 27.55"

MAX SPEED: 35 SPM

WINDOWS: 48"

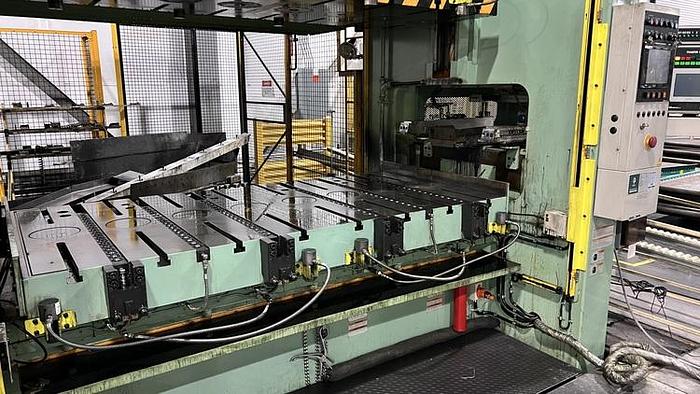

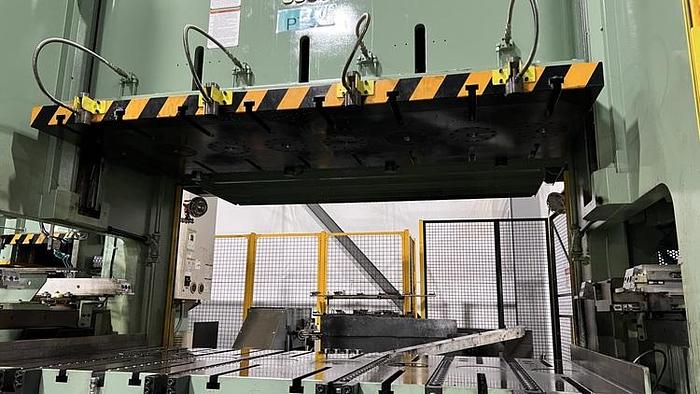

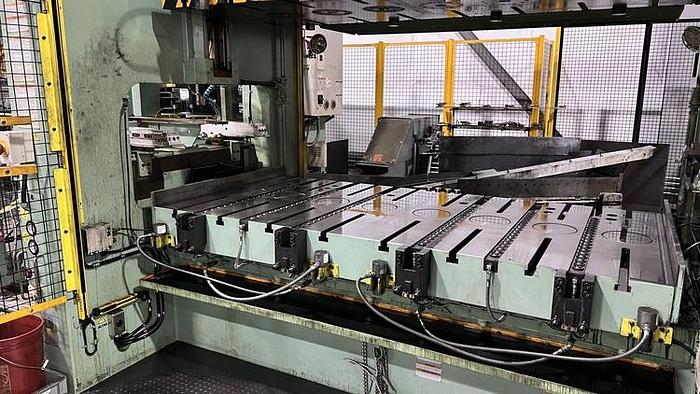

HYDRAULIC DIE CLAMPING

EQUIPPED WITH:

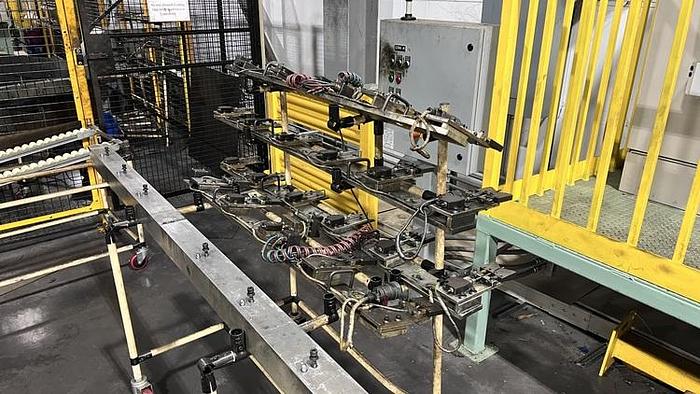

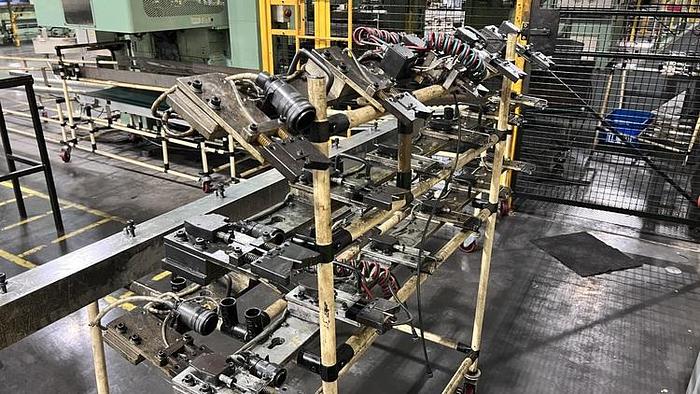

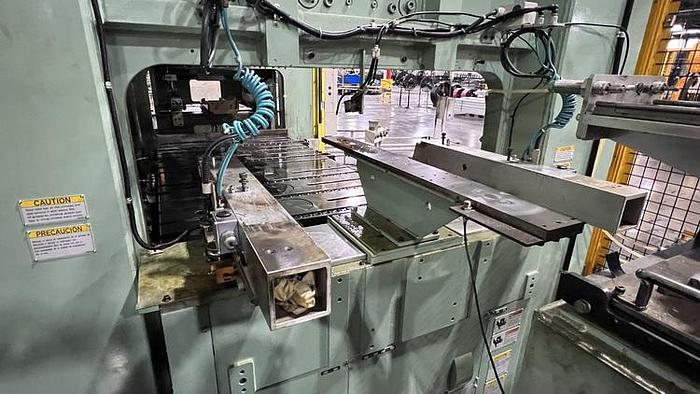

AIDA TRANSFER SYSTEM MODEL TCS-40-35/70

SERIAL NUMBER: 12300-6484

FEED STROKE: 0-400 MM

CLAMP STROKE: 0-175 MM

LIFT STROKE: 0-60 MM

MIN DISTANCE BETWEEN BARS AT CLAMP: 350 MM

MAX DISTANCE BETWEEN BARS AT UNCLAMP: 700 MM

BOLSTER TO FEED BAR TOP AT DOWN END: 400 MM

FEED DRIVE MOTOR: 4 KW AC SERVO

CLAMP DRIVE MOTOR: 3 KW AC SERVO

LIFT DRIVE MOTOR: 2 KW AC SERVO

FEEDABLE WEIGHT LIMIT: 40 KG
