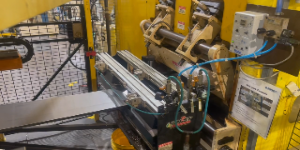

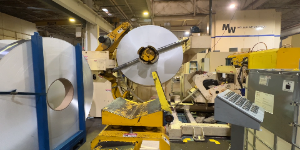

2012 COE SPACEMASTER SERIES 3 COMPACT COIL FEED LINE

MODEL NUMBER: CCL-S3-15032

FEED DIRECTION: RIGHT TO LEFT

PASS LINE: 45.00"

VOLTAGE: 460

MATERIAL SPECIFICATIONS:

55 HSLA - MAX: 0.250" THICK @ 9.00" WIDE

M.C.R.S. - MAX: 0.100" THICK @ 30.00" WIDE

55 HSLA - MIN: 0.098" THICK @ 14.00" WIDE

FEEDER-STRAIGHTENER SPECIFICATIONS:

FULL BODY WIDTH: 30"

FEED DRIVE: 15 KW

DRIVE RATIO: 14:1 RATIO

ACCELERATION: 20 FT/SEC/SEC

ROLL SPEED: 160 FT/MIN

FEED ACCURACY: +/- 0.005"

STANDARD SPECIFICATIONS:

MAX MATERIAL THICKNESS: .250"

MAX MATERIAL WIDTH: 30"

MIN MATERIAL WIDTH: 4"

THICKNESS x WIDTH: .250" x 9" WIDE

THICKNESS x WIDTH: .100" x 30" WIDE

PINCH ROLLERS: (2) ROLLS - 4.4" DIA.

FEEDER ROLLERS: (2) ROLLS - 5.7" DIA.

STRAIGHTENER ROLLERS: (8) ROLLS - 3.5" DIA. - 4 OVER 4

PRODUCTION SPEED: 80 FPM

COIL WEIGHT: 15,000 LBS

COIL ID: 20" NOMINAL

COIL OD: 72" MAX

EXPANSION TYPE: WEDGE TYPE BY HYDRAULIC CYLINDER

MANDREL BRAKE TYPE: FAILSAFE AIR CALIPER DISC BRAKE

COIL HOLD DOWN: HYDRAULIC OPERATED W/MOTORIZED ENDWHEEL

HOLD DOWN DRIVE: A.C. VARIABLE SPEED INVERTER DUTY

COIL GUIDING: DUAL ROLL COIL GUIDE ASSEMBLY, UPPER & LOWER

UNCOILER DRIVE: A.C. VARIABLE SPEED INVERTER DUTY

LOOP CONTROL: PHOTO-EYE LOOP CONTROL

FEEDER DRIVE: CLOSED LOOP YASKAWA SERVO MOTOR

MACHINE INTERFACE: SERVOMASTER MMI

PASSLINE HEIGHT: 45"

PASSLINE ADJUSTMENT: +/- 4"

THREADING SYSTEM: THREAD ASSIST ROLL & THREAD DEBENDER ROLL

COIL REEL FEATURES:

460 VOLT AC THREE PHASE SUPPLY VOLTAGE

REEL MOTOR AC VARIABLE SPEED DRIVE - DIGITAL CONTROL

0-17 RPM MANDREL SPEED

SINGLE END REEL CONFIGURATION

HEAVY DUTY BACKPLATE

72" MAX COIL OUTSIDE DIAMETER

(4) PAD MANDREL CONSTRUCTION

HYDRAULIC MANDREL EXPANSION FEATURE

18.5" - 20.5" MANDREL EXPANSION RANGE

HYDRAULIC OPERATED COIL HOLD DOWN ARM W/MOTORIZED ENDWHEEL

HYDRAULIC OPERATED COIL HOLD UP FOR THREADING

UPPER DUAL ROLL COIL GUIDE ASSEMBLY

LOWER DUAL ROLL COIL GUIDE ASSEMBLY

ELECTRIC EYE LOOP CONTROL

FEEDER-STRAIGHTENER FEATURES:

460 VOLT AC THREE PHASE SUPPLY VOLTAGE

AC SERVO DRIVE - DIGITAL CONTROL

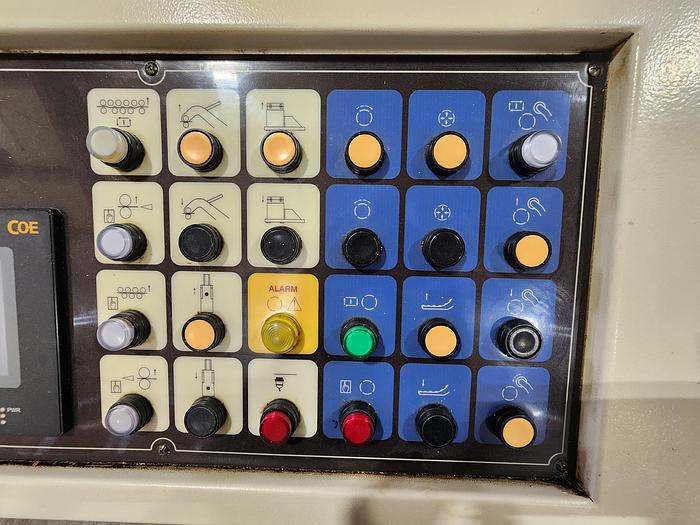

DESK TYPE SLANT TOP CONTROL ENCLOSURE

CENTRALIZED CONTROLS FOR REEL AND FEEDER

THREAD ASSIST ROLL

THREAD DEBEND ROLL

DUAL ROLL HAND CRANK ENTRANCE EDGE GUIDES

SINGLE ROLL HAND CRANK EXIT EDGE GUIDES

(3) ROLL CATENARY SUPPORT SECTION W/FULL SIDEPLATES
