60" x 40,000 LB PERFECTO FEED LINE

MODEL 700-60 FEEDER

FLOOR MOUNT SINGLE ROLL ELECT. FEED

SERIAL NUMBER: 94235

MODEL 38-60-7 STRAIGHTENER

POWERED STOCK STRAIGHTENER

MAX THICKNESS: .250" @ 30" or .125" @ 60"

MATERIAL: MILD STEEL 40,000 PSI YIELD

(7) STRAIGHTENING ROLLS, 3.75" DIAMETER ON 5" CENTERS

(2) SETS OF 6" PINCH ROLLS

MILL TYPLE STOCK GUIDES

PEELER

RESTRICTOR ARM

FLATTENER

MOTORIZED UPPER ROLL ADJUST

SERIAL NUMBER: 94233

MODEL RS-40-60 COIL REEL

MAX OD: 72"

ID RANGE: 20" - 24"

MAX COIL WIDTH: 60"

MAX COIL WEIGHT: 40,000 LBS

SERIAL NUMBER: 94232

MODEL LC-4H "V" DECK LOADING CAR

SERIAL NUMBER: 94231

MODEL TT-6020 THREAD TABLE

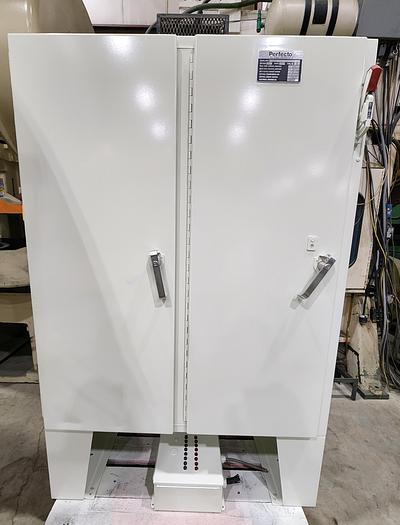

SONIC LOOP CONTROL

SERIAL NUMBER: 94234

MAX THICK: .250"

MAX LINE SPEED IPM: 600

MIN LINE SPEED IPM: 300

FEED DIRECTION: RIGHT TO LEFT

VOLTAGE: 460V/3PH/60HZ
