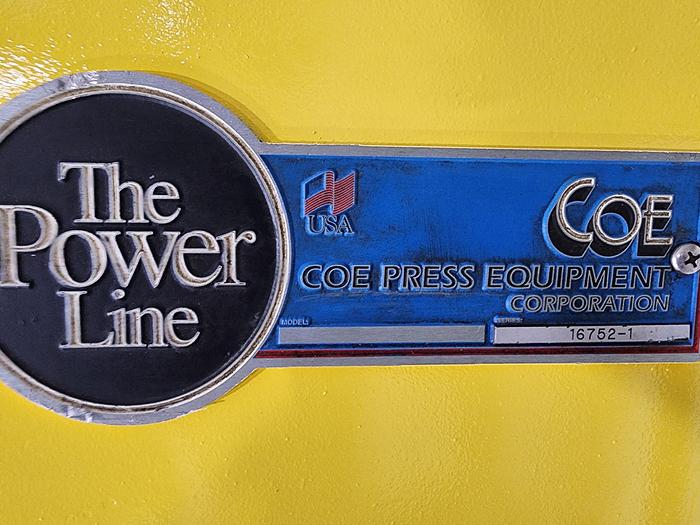

POWERLINE SERIES

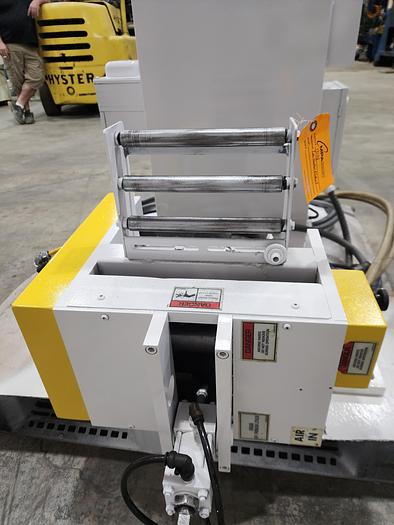

AC SERVO DRIVEN DIGITAL ROLLFEED

MODEL NUMBER: CPRF-M12

SERIAL NUMBER: 16752-1

MATERIAL TYPE: PRE-STRAIGHTENED MCRS

MAX MATERIAL WIDTH: 8"

MAX MATERIAL THICKNESS: .140" @ 8" WIDE

MIN MATERIAL THICKNESS: .020" @ 8" WIDE

FEED ANGLE: 180-240 DEGREES

MAX SPEED: 325 FT/MIN

ACCELERATION: 90 FT/SEC/SEC

FEED ACCURACY: +/- .003"

NUMBER OF FEED ROLLS: 2

FEED ROLL OD: 2.25"

FEED ROLL ID: 0" - SOLID ROLLS

FEED ROLL BODY WIDTH: 12"

DRIVE RATIO: 3.41:1
