2004 AIDA UMX-1100(2)

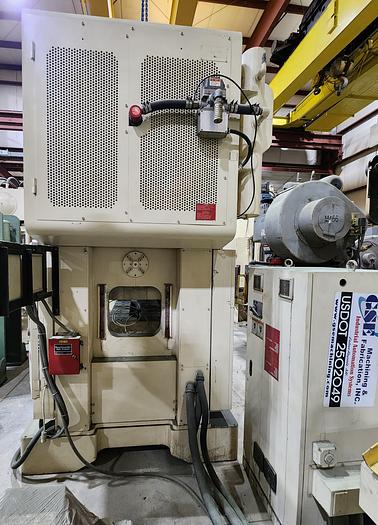

The 2004 AIDA UMX-1100(2) is a used straight side mechanical press with a capacity of 110 tons. Designed for precision and efficiency, it operates at speeds ranging from 60 to 180 strokes per minute. The press features a die height of 13.77 inches, a slide area measuring 47.24 inches by 20.47 inches, and a bed area of 47.24 inches by 21.65 inches, making it suitable for various industrial applications. This model is equipped with a range of WINTRISS systems, including the SmartPac, AutoSetPac, and programmable cam outputs, enhancing its functionality and ease of use. Safety and convenience are prioritized with a dual palm button station, and the equipment includes a T-slotted ram and bolster for versatile mounting options. The press requires 5 KGF of air pressure, and its main motor is rated at 15 kW, ensuring robust performance. Additional specifications include a stroke length of 3.14 inches, a slide adjustment of 1.18 inches, and window dimensions of 17.5 inches in width by 17 inches in height. This press is ideal for operations requiring reliability and precision, providing a comprehensive solution for diverse manufacturing needs.
