2002 MINSTER P2H-63-39x24-FW
Sold
2002 MINSTER P2H-63-39x24-FW
$199,500 (USD)
Description

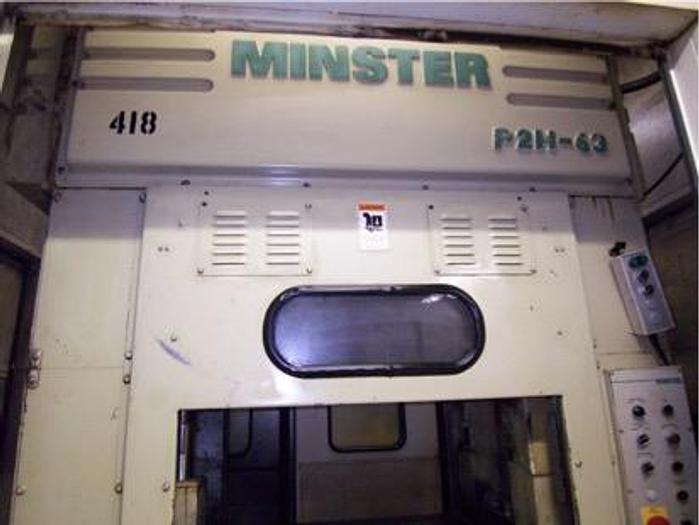

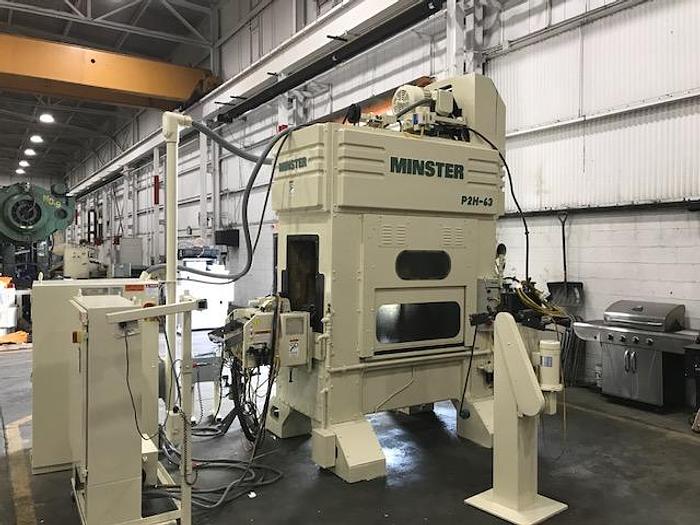

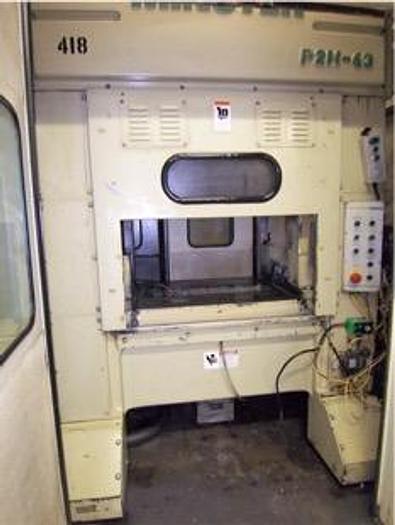

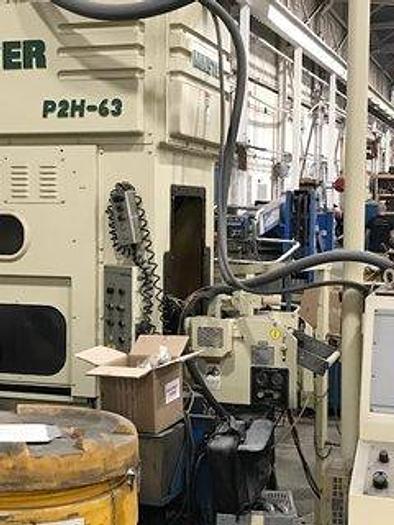

MINSTER P2H-63 HIGH SPEED PRESS
SPECIFICATIONS (INCH) - P2H PRECISION STRAIGHT SIDE PRESS
-PRESS SPECIFICATIONS-
-PRESS SLIDE SPECIFICATIONS-
-PRESS BOLSTER SPECIFICATIONS-
-PRESS FRAME SPECIFICATIONS-
Specifications

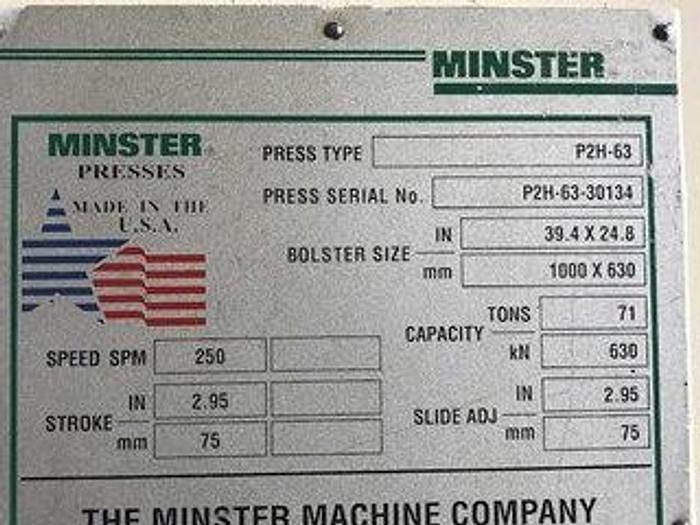

| Manufacturer | MINSTER |
| Model | P2H-63-39x24-FW |
| Year | 2002 |
| Condition | Used |
| Serial Number | 30134 |
| Stock Number | 4071 |
| Conditon | Used |
| Force x distance off bottom | 70 ton x 0.063" |
| Crankshaft extension length | 3.6" |
| Crankshaft extension location | OPPOSITE DRIVE SIDE |
| Drive arrangement | FLYWHEEL |
| Drive location | LEFT HAND SIDE |
| Lube unit location | DRIVE SIDE |
| Approximate press mass | 26,000 LB |
| Shut height indicator readout | INCH |
| Stroke length, speed range | 2.95", 100 - 250 SPM |
| Adjustment of shut height | 2.95" |
| Quick access slide travel | 0.98" - 3.96" |
| Area of slide, r-l x f-b | 40.0" x 25.0" |
| Slide face machining | STANDARD |
| Special (13) bolster plate material | NONE |
| Special (24) bolster plate thickness | NONE |
| Special (26) area of bolster, r-l x f-b | NONE |
| Special (27) opening in bolster, r-l x f-b | NONE |
| Special (15) bolster plate machining | NONE |
| Upright passline opening, f-b | 13.1" |
| Area of bed, r-l x f-b | 39.5" x 24.5" |
| Opening in bed, r-l x f-b | 34.5" x 9.00" |
| Bed deflection at 67% of die area | 0.0005 in/ft |
| Special (3051) shut height, sdau | 17.50", ON BED |
| Approx clearance, mount to bottom of bed | 15.0" |
| Special (1245) approx dist mount to top of bolster | NONE |
| Approx distance mount to top of bed | 39.2" |
| Approx floor area, r-l x f-b | 92.3" x 64.5" |
| Approx overall area, r-l x f-b | 92.3" x 64.5" |
| Approx overall height, from mount | 140" |
